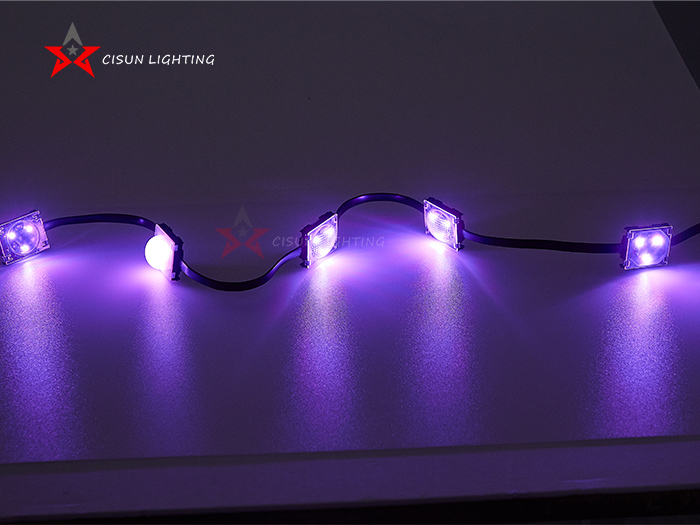

35mm led pixel light for the building facade lighting decoration
- Lamp type： LED pixel light
- Product code： PX-H35
- Dimensions： φ35*H13.2mm
- Material： PC
- Light Color： R,G,B,Y,W,WW,RGB,RGBW
- Rated Power： 0.72W/0.96W/1.44W
- Rated voltage： DC24V
- IP rating： IP67
- Parameters
- Lamp type： LED pixel light
- Product code： PX-H35
- Dimensions： φ35*H13.2mm
- Material： PC
- Light Color： R,G,B,Y,W,WW,RGB,RGBW
- Rated Power： 0.72W/0.96W/1.44W
- Rated voltage： DC24V
- IP rating： IP67
◆ Description
To draw the contour of the buildings and bridges
To achieve synchronization of multi-building media facade screen forlarge-scale urban landscape projects
To large outdoor advertisement LED display and transparent LED display Fabricate large outdoor signage and
perforated LED character light source For outdoor, underground, underwater, parks and other landscape lighting
◆ Dimensions
◆ Specifications
◆ Order Product Code
| No. | Code | Light color | LED | POWER | Voltage | Control | Remark |
| 1 | PX-H35-DMXRGB | RGB | 3PCS SMD3535/4PCS SMD3535 | 0.72W/0.96W | DC12V/DC24V | DMX512 | |
| 2 | PX-H35-DMXRGBW | RGBW | 1PCS SMD2835+3PCS SMD3535 2PCS SMD2835+4PCS SMD3535 | 0.96W/1.44W | DC12V/DC24V | DMX512 | |
| 3 | PX-H35-TTLRGB | RGB | 3PCS SMD3535/4PCS SMD3535 | 0.72W/0.96W | DC12V/DC24V | TTL | |
| 4 | PX-H35S | Monochrome | 6PCS SMD2835 | 1.44W | DC12V/DC24V | On/Off |
